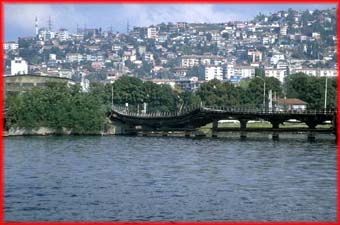

Collapsed Jetty, Izmit

Part of this reinforced concrete jetty near Izmit was damaged during the earthquake. The jetty was quite old. It was clear, that before the earthquake, concrete had already fallen off its surface exposing the steel reinforcing bars which had rusted.

(See Close Up)
